Product highlights of the automatic liquid filling line for electrolyte:
Filling accuracy ±0.05% – achieved through closed-loop servo control and load cell feedback
Moisture lock design – filling chamber maintains dew point below -40°C with continuous nitrogen sweep
Self-cleaning nozzles – automated purge cycle removes crystallized electrolyte residue after each batch
Explosion-proof rating Ex db IIB T4 – safe for flammable solvent vapors (DMC, EMC, DEC)
Changeover under 15 minutes – quick-release fittings and recipe-based positioning
System configuration with automatic liquid filling line for electrolyte:
Sealed filling chamber – with viewing window and glove ports for manual intervention
Servo-driven nozzle lift – adjustable stroke from 50mm to 800mm
Pressurized supply tank – 316L stainless steel with level sensors and agitation
Inline flow meter array – Coriolis type for mass-based batching
Conveyor section – roller bed with container indexing stops
Exhaust ventilation system – connects to facility scrubber for vapor capture
Control cabinet with HMI – stores up to 50 product recipes and 90-day production logs

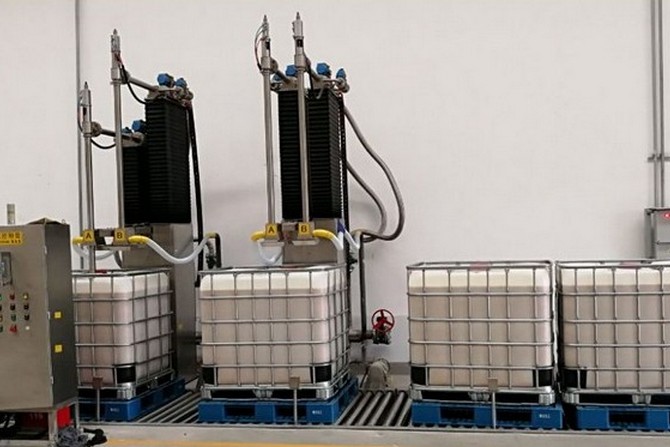

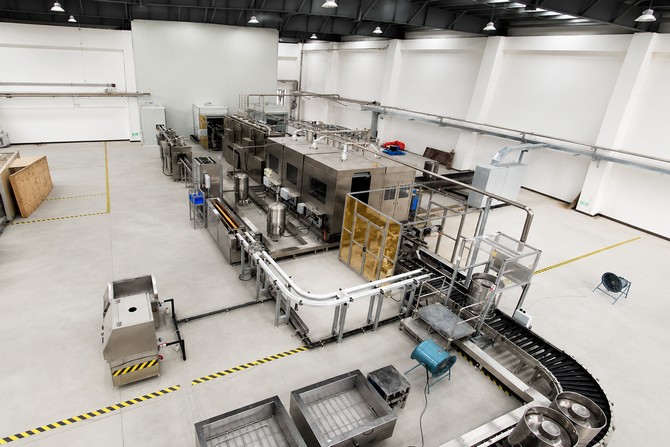

Customer site photos:
No Any Post.
According to user needs, we providecomplete production line design. including: industrial planning, electromechanical design, simulation.
Provide a complete production lineelectrical control system and software.
Assign engineers to perform on-siteinstallation and commissioning, andtrain operators.
Provide all-round product after-salesservice and solve technical problems for customers in a timely manner.
