SUMMERY: You’ve got a welding shop full of odd jobs: long box sections, tank bottoms, big storage tanks, and the occasional flat plate that needs a long, straight seam. A handheld MIG gun works, but your back hurts and your bead consistency is al...
You’ve got a welding shop full of odd jobs: long box sections, tank bottoms, big storage tanks, and the occasional flat plate that needs a long, straight seam. A handheld MIG gun works, but your back hurts and your bead consistency is all over the place. So you’re looking at an automatic welding carriage. Good.
But here’s the thing nobody tells you: not all automatic welding carriage systems are the same. Some need a rigid track. Some need a flexible strap. And some don’t need a track at all – they just roll on wheels. Which one saves your bacon depends on what you’re welding.
We’re a factory that builds all three types. Let me walk you through the real differences, no marketing fluff.

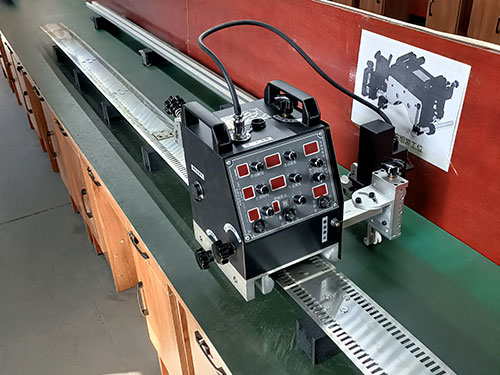

If you weld long, straight seams on things like truck box sides, chassis rails, or tank bottom plates, you want a rigid straight rail. The automatic welding carriage rides on an aluminum or steel track that clamps to the workpiece edge or sits on magnets. No wobble. No drift.
Our straight-rail mig welding carriage uses a precision gear rack on the rail and a pinion drive in the carriage. You set travel speed, oscillation width, and dwell time – then let it eat. We’ve used this on 10-meter-long box sections with less than 0.5mm deviation end to end. Try doing that by hand.
Why straight rail works for flat/box work:
– Rigid track = perfect torch angle for fillet or butt welds
– Easy to mount multiple carriages on parallel rails
– Can weld vertical seams if you add magnetic backing
A straight-rail mig welding carriage is your go-to for repetitive linear welds. Price for the rail + carriage? Typically under $3,500 from our factory. But that’s not the only flavor.
Now let’s talk about the nightmare job: a 20-meter-diameter storage tank with a circumferential seam. You can’t use a straight rail – it won’t bend. You can’t freehand a full circle without inconsistent speed. This is where a welding track carriage with a soft flexible track becomes your best friend.
We manufacture a welding track carriage that runs on a spring-steel soft track wrapped around the tank or large pipe. The track has a rubber backing to prevent slipping. You ratchet it tight, snap the automatic welding carriage onto it, and the carriage orbits the entire tank automatically. The track length is custom-cut to your exact circumference.
Real numbers: A 10-meter diameter tank has a circumference of ~31.4 meters. We’ll cut a soft track to 31.6 meters (including overlap). The mig welding carriage will run for 15–20 minutes straight, laying down a uniform cap pass that would take a skilled welder over an hour – with much higher risk of undercut on the bottom half.
The soft-rail welding track carriage handles diameters from 24 inches up to any size you can wrap. We’ve done 50-meter circumference ammonia tanks. No problem. And because the track is flexible, you can store it in a coil, throw it in a truck, and set up in 10 minutes.
Price for soft-rail system (carriage + custom track): $4,000–$5,500 depending on length. That’s direct from our factory floor.

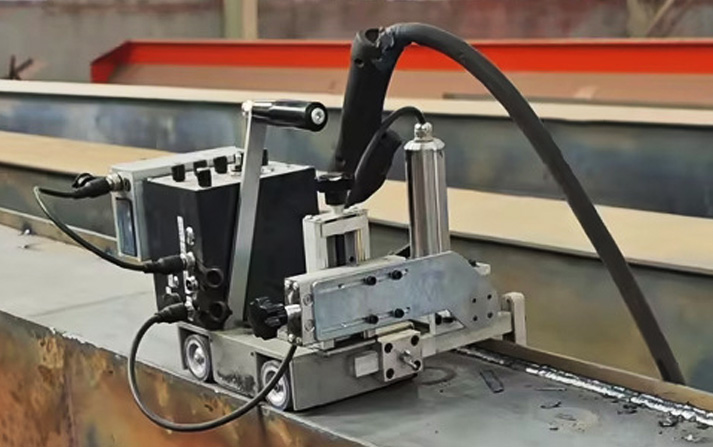

What if you don’t want to mess with any rail? That’s where our trackless automatic welding carriage comes in. This little beast has rubber wheels, a magnetic base (optional), and drives directly on the steel plate. No track. No setup time. Just stick it on the plate, align the torch, and press go.
We call it the “free-range” mig welding carriage. It works best on flat or slightly curved plates where you need a straight or slightly curved weld – but without the hassle of laying down a track. The wheels are spring-loaded to maintain traction, and you can steer it manually via a remote pendant.
Where a wheeled automatic welding carriage shines:
– Welding stiffeners on flat plates (just set it and let it run)
– Short seam repairs on tank roofs (no room to lay a track)
– Prototype or one-off jobs where cutting a custom track isn’t worth it
The trade-off? Lower precision than a tracked system. You might get 1–2mm of wander over 1 meter. For many jobs – like fillet welds on 10mm plate – that’s totally fine. For X-ray critical seams, stick with the welding track carriage with a rigid or soft rail.
Price for wheeled, trackless automatic welding carriage: $2,500–$3,200, including magnetic switch and remote control.
Let’s cut through the confusion. Here’s how I (a factory guy who builds these) would decide:
| Your job type | Best choice |
|—————|————–|
| Long straight seams on box sections, chassis, bottom plates | Straight-rail automatic welding carriage |
| Large storage tank circumferential welds (any diameter) | Soft-track welding track carriage |
| Flat plate stiffeners, short runs, quick repairs | Wheeled trackless mig welding carriage |
Still not sure? Order a demo of our mig welding carriage with a straight rail and a 2-meter soft track sample. Run it on your worst job. If you don’t see at least 2x speed improvement with cleaner beads, send it back. No hard feelings.
Because when you call about a welding track carriage problem, you talk to the machinist who built the drive wheels. Not a call center. Need a custom track length for a 15-foot diameter tank? We’ll laser-cut it and ship in 48 hours. Want to convert your straight-rail automatic welding carriage to run on a soft track? We’ll sell you the adapter kit for $200.
Every automatic welding carriage we ship comes with:
– Stepless travel speed (100–1200 mm/min)
– Oscillator with adjustable width and dwell
– Torch holder for Binzel, Trafimet, or Tweco
– 24V DC safe power
Prices:
– Wheeled (trackless): $2,500–3,200
– Straight rail system: $3,000–4,500 (depending on rail length)
– Soft rail system (custom track included): $4,000–5,500
An automatic welding carriage isn’t a luxury anymore – it’s a productivity tool that pays for itself in weeks. But only if you get the right type. Straight rail for boxes and flat plates. Soft welding track carriage for tanks and pipes. Wheeled mig welding carriage for quick jobs and tight spaces.
We make all three. Email us your typical workpiece shape and size, and we’ll recommend which automatic welding carriage fits – and quote you a factory-direct price within 24 hours. No sales dance. Just welders helping welders.
